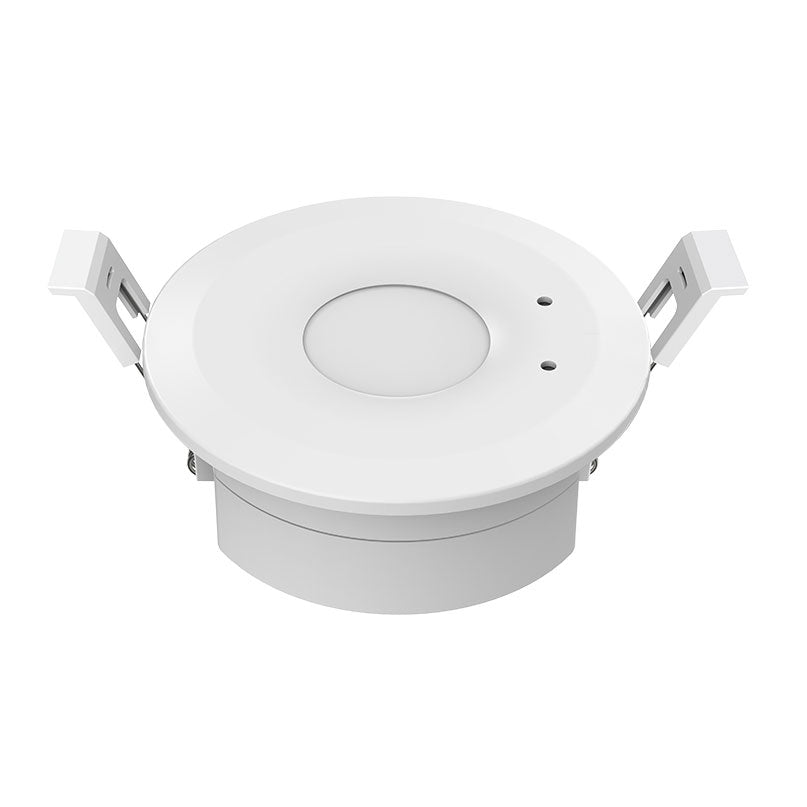

100-240VAC RF/0-10V Ceiling Microwave Induction Dimmer & Switch
Couldn't load pickup availability
Application 1: used as a switch
Turns on the light upon detection of motion, and turns off after a pre-selected hold time when there is no movement.
Application 2: used as a switch with two-step dimming
Turns on the light upon detection of motion, after a pre-selected hold time, dim to 20% brightness, and turns off after a pre-selected standby time when there is no movement.
Application 3: used as a dimmer
Turn on the light and dim up to the expected brightness level upon detection of motion, and turns off after a pre-selected hold time when there is no movement.
Features
● Ceiling mounting microwave motion detectors with HF system 10.525GHz, built-in daylight sensor.
● Output 1 channel 0/1-10V signal, connect with 0/1-10V dimmable LED driver.
● High voltage AC input, High voltage AC relay output with zero-cross detection.
● Can work as RF remote, output RF 2.4G signal, matched with RF LED controller or
RF dimmable LED driver.
● Detection area, time delay, and light threshold can be set via the knob potentiometer.
Item Code:
DAB-EH-M
